Download all latest schematics, PCBs and bills of materials for 32 inputs version in KiCad and PDF formats from MegaDrum forum (forum registration required)

Click the images to see full size versions.

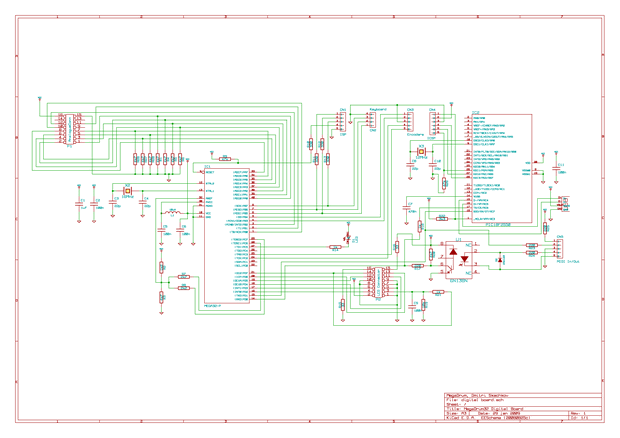

MegaDrum Atmega32 Digital Board

digital board

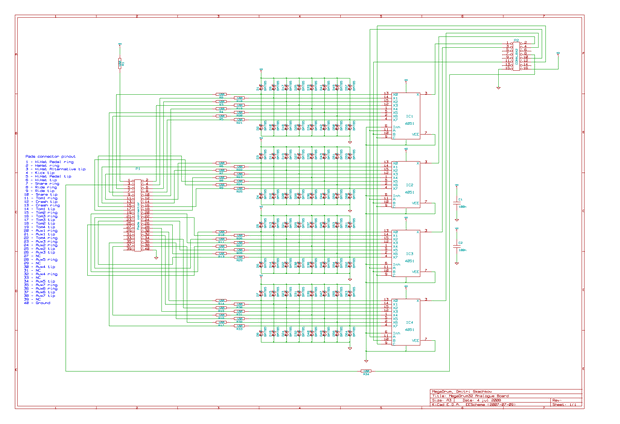

MegaDrum Analogue Board - 32 inputs version.

analogue board

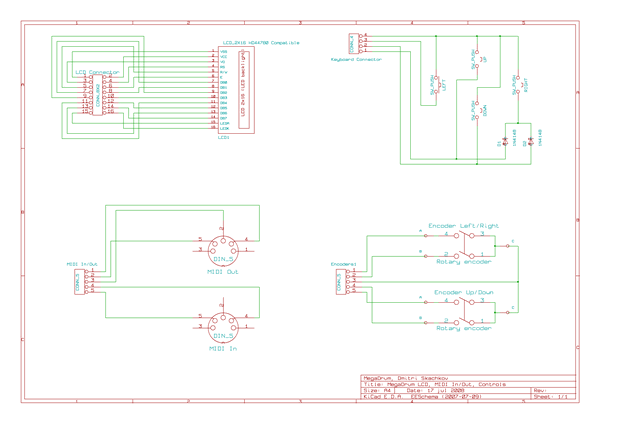

MegaDrum LCD, Keyboard, Rotary Encoders (optional) and MIDI In/Out (optional)

lcd midi controls

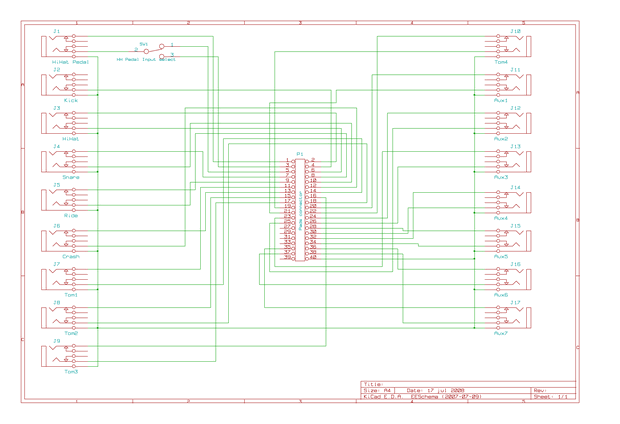

MegaDrum Input Sockets
input sockets

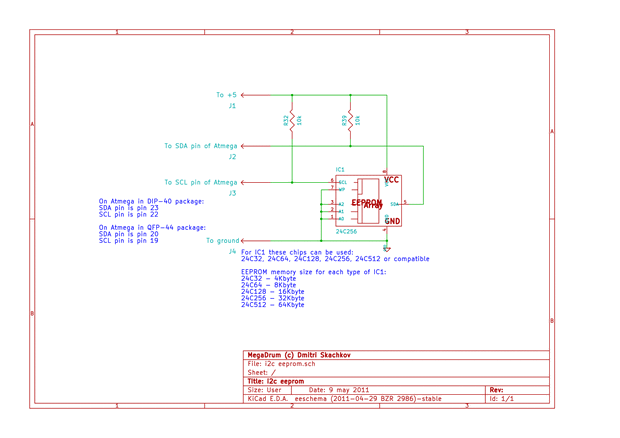

Optional. EEPROM extension

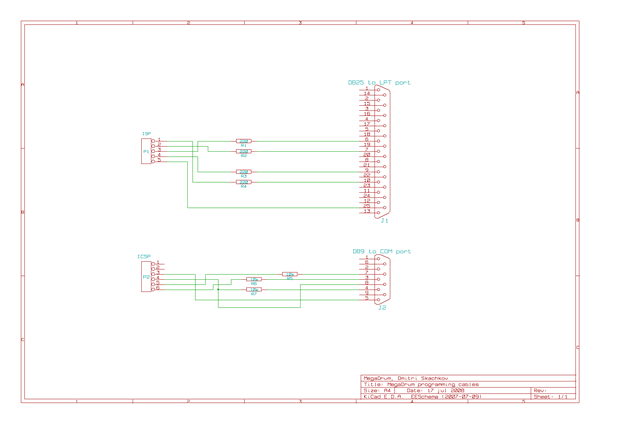

ISP (for Atmega) and ICSP (for PIC18F2550) programming cables
programming cables
